Commissioned Hydropower Projects

Detailed technical portfolio of successfully commissioned hydropower projects engineered by UEC

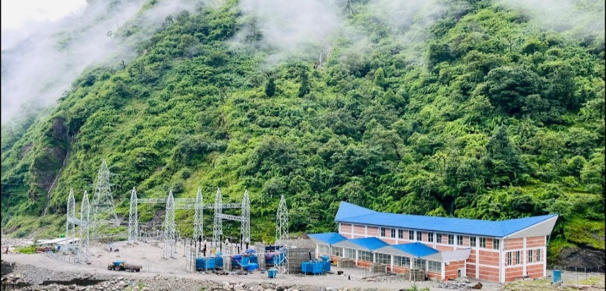

Thulo Khola Hydropower Project 21.3 MW

Thulo Khola Hydropower Project, Myagdi

Owner/ClientSamyukta Urja Limited
LocationMyagdi District
Capacity21.3 MW
Gross Head354.50 m
Design Discharge7.3 m³/sec
Headrace TunnelInverted D-Shape, 3.5 m (Width), 3.75 m (Height to crown), length 2700 m
Surge TankUnderground, 10 m diameter and 35 m height
Penstock Pipe1.9 m to 1.6 m diameter, length 1720 m
TurbineThree-Unit Pelton turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Construction supervision and project management, Operation guidelines, Operation support

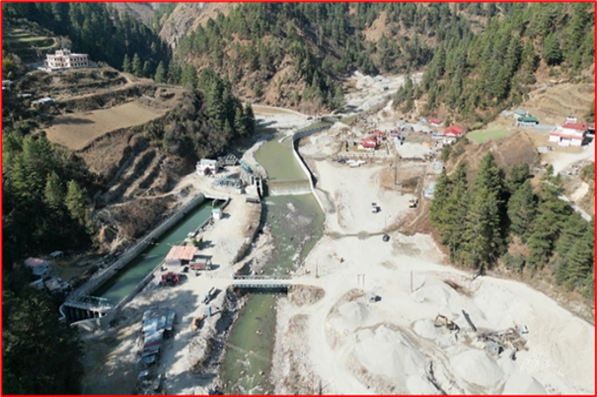

Upper Solu Hydropower Project 19.8 MW

Upper Solu Hydropower Project, Solukhumbu

Owner/ClientBeni Hydropower Project Private Limited
LocationSolukhumbu District
Capacity19.8 MW
Gross Head185.1 m
Design Discharge13.0 m³/sec
Headrace TunnelInverted D-Shape, 3.3 m (Width), 3.45 m (Height to crown), length 2370 m
Surge TankUnderground, 7.5 m diameter and 29 m height
Penstock Pipe2.2 m to 2.0 m diameter, length 690 m
TurbineThree-Unit Francis turbine, Horizontal Axis
Services Provided: Detailed engineering design, Construction supervision support

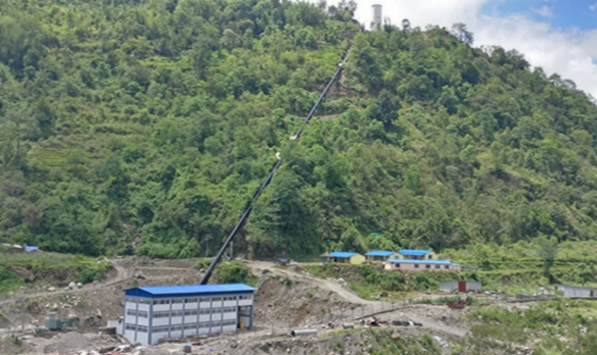

Super Mai Hydropower Project 9.6 MW

Super Mai Hydropower Project, Ilam

Owner/ClientSagarmatha Jalbidhyut Company Private Limited
LocationIlam District
Capacity9.6 MW
Gross Head199.3 m
Design Discharge6.4 m³/sec
Headrace Pipe1.95 m - 1.65 m diameter, length 3749 m
Surge TankSurface, Concrete circular tank of 7.5 m diameter and 27 m height
Penstock Pipe1.55 m diameter, length 647 m
TurbineThree-Unit Francis turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Construction supervision

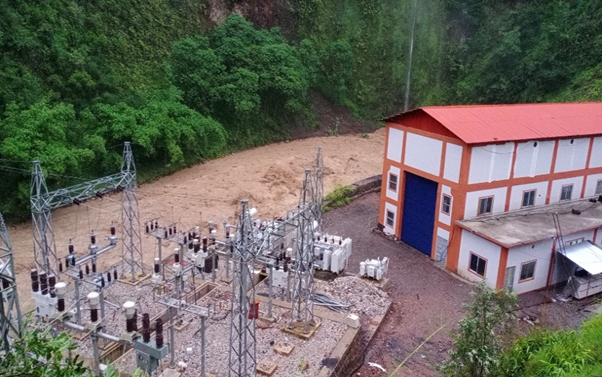

Daram Khola Hydroelectric Project 9.6 MW

Daram Khola Hydroelectric Project, Baglung

Owner/ClientDaram Khola Hydro Energy Company Limited
LocationBaglung District
Capacity9.6 MW
Gross Head127 m
Design Discharge10.6 m³/sec
Headrace Pipe2.2 m - 1.8 m diameter, length 4195 m
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Construction supervision

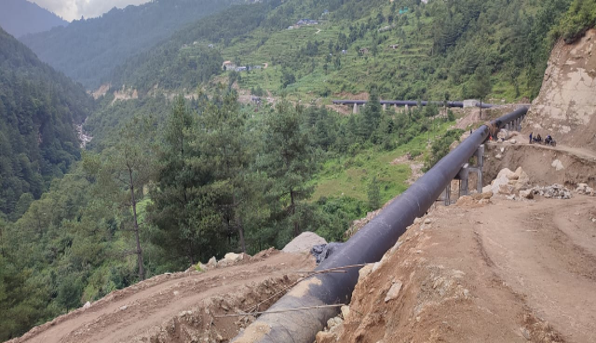

Mid Solu Khola Hydropower Project 9.5 MW

Mid Solu Khola Hydropower Project, Solukhumbu

Owner/ClientMid-Solu Hydropower Project Private Limited
LocationSolukhumbu District
Capacity9.5 MW
Gross Head128 m
Design Discharge10.0 m³/sec
Headrace Pipe2.1 m, 2.0 m & 1.9 m diameter, length 3435.0 m
Surge TankSurface, Concrete circular tank of 10 m diameter and 28 m height
Penstock Pipe1.8 m diameter, length 360.55 m
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Detailed survey, Feasibility study, Detailed engineering design, Construction supervision support

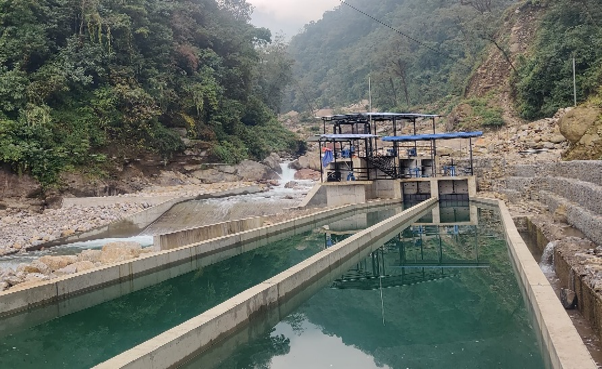

Super Chepe Hydropower Project 9.05 MW

Super Chepe Hydropower Project, Gorkha

Owner/ClientRidge Line Energy Limited
LocationGorkha District
Capacity9.05 MW
Gross Head559.4 m
Design Discharge2.0 m³/sec
Headrace Pipe1.2 m, 1.1 m & 1.0 m diameter, length 3411.0 m
Surge TankSurface, Steel pipes of 2.0 m diameter arranged in inclined and horizontal configurations
Penstock Pipe0.9 m diameter, length 1196 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Tender document preparations, Construction supervision

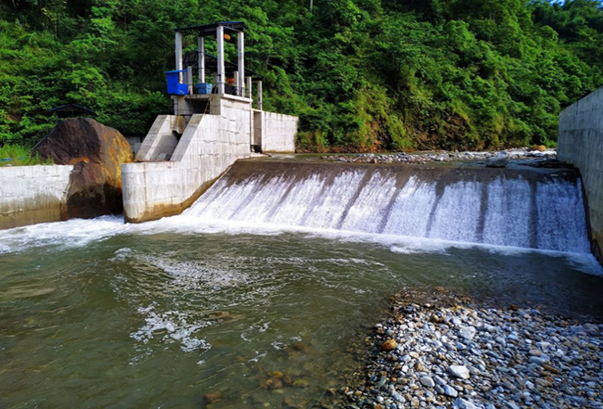

Super Mai A Hydropower Project 7.8 MW

Super Mai A Hydropower Project, Ilam

Owner/ClientSuper Mai Hydropower Company Private Limited
LocationIlam District
Capacity7.8 MW
Gross Head134.5 m
Design Discharge7.35 m³/sec
Headrace Pipe2.05 m - 1.85 m diameter, length 3253 m
Surge TankSurface, Concrete tank of 7 m diameter and 24.0 m height
Penstock Pipe1.75 m diameter, length 300 m
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Tender document preparations, Construction supervision

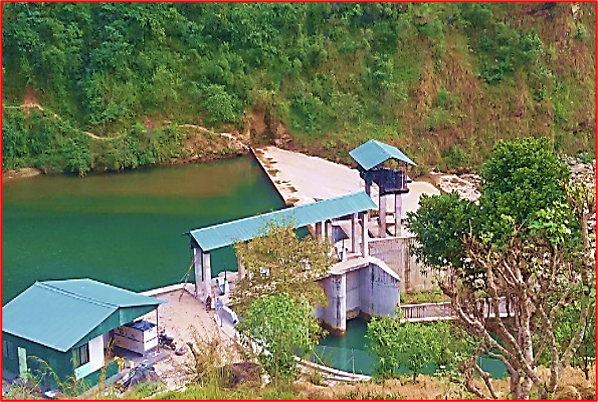

Daraudi Khola A Hydropower Project 6.2 MW

Daraudi Khola A Hydropower Project, Gorkha

Owner/ClientDaraudi Kalika Hydro Private Limited
LocationGorkha District
Capacity6.2 MW
Gross Head66 m
Design Discharge11.32 m³/sec
Headrace Pipe2.5 m diameter, length 2648.6 m
Headrace TunnelInverted D-Shape, 2.7 m diameter, length 696.2 m
Surge TankUnderground, 12 m diameter and 28 m height
Penstock Pipe2.1 m diameter, length 299 m
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Redesign of headworks, Detailed engineering design, Construction drawing preparations

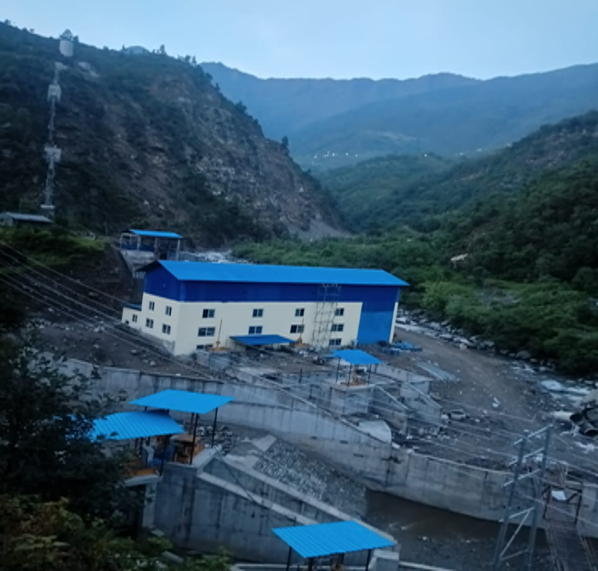

Sagu Khola -1 Hydropower Project 5.5 MW

Sagu Khola -1 Hydropower Project, Dolakha

Owner/ClientDaraudi Kalika Hydro Private Limited
LocationDolakha District
Capacity5.5 MW
Gross Head149.5 m
Design Discharge4.68 m³/sec
Headrace Pipe1.6 m - 1.4 m diameter, length 1832 m
Surge TankSurface, Concrete tank of 6 m diameter and 20.2 m height
Penstock Pipe1.3 m diameter, length 328 m
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Detailed engineering design, Construction drawing preparations

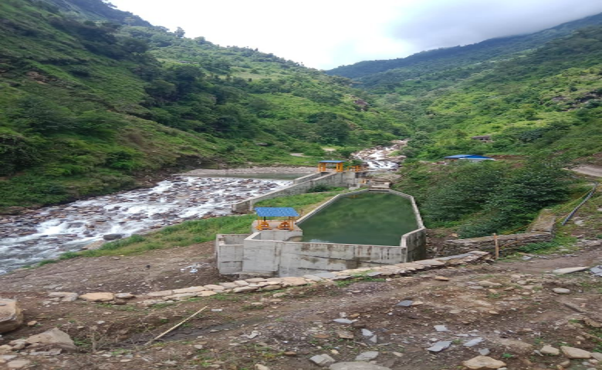

Buku Kapte Hydropower Project 5.0 MW

Buku Kapte Hydropower Project, Okhaldhunga

Owner/ClientHimstar Urja Company Private Limited
LocationOkhaldhunga District
Capacity5.0 MW
Gross Head255 m
Design Discharge2.4 m³/sec
Headrace Pipe1.4 m - 1.1 m diameter, length 1911 m
Surge TankSteel Pipe combination of 1.2 m diameter inclined pipe and 2.5 m diameter horizontal pipe
Penstock Pipe1.0 m diameter, length 447 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Detail design, Preparation of Construction Drawings, Construction supervision

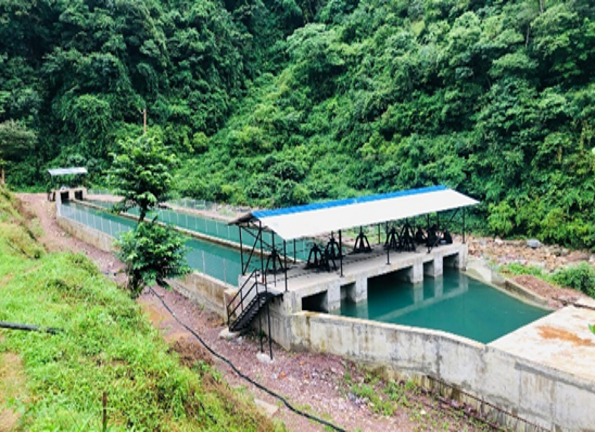

Bhim Khola Small Hydropower Project 4.96 MW

Bhim Khola Small Hydropower Project, Baglung

Owner/ClientShikhar Power Limited
LocationBaglung District
Capacity4.96 MW
Gross Head180.0 m
Design Discharge3.5 m³/sec
Headrace Pipe1.5 m - 1.2 m diameter, length 2723.0 m
Surge TankSurface, Concrete circular tank of 5 m diameter and height 28.45 m
Penstock Pipe1.2 m diameter, length 252.0 m
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Detail design, Preparation of Construction Drawings, Construction supervision

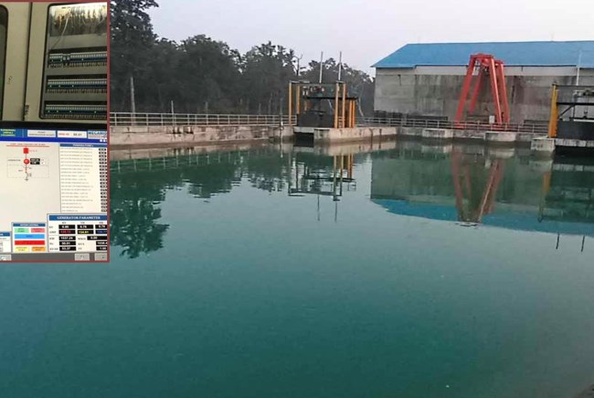

Rani Jamara Kulariya Irrigation Project 4.71 MW

Rani Jamara Kulariya Irrigation Project, Kailali

Owner/ClientRani Jamara Kulariya Irrigation Project
LocationKailali District
Capacity4.71 MW
Gross Head8.0 m
Design Discharge80.0 m³/sec
TurbineThree-Unit Kaplan turbine
Services Provided: Detail design of powerhouse, Preparation of Construction Drawings, Construction supervision

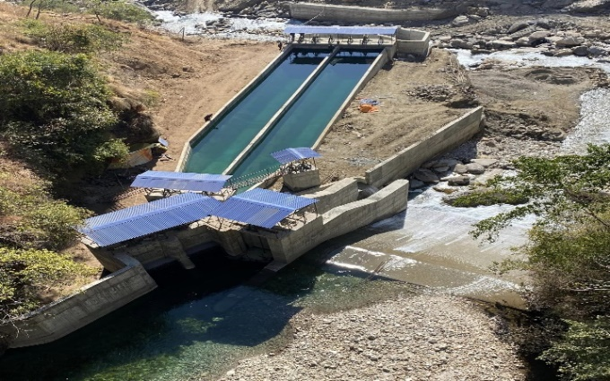

Upper Machha Khola Hydropower Project 4.55 MW

Upper Machha Khola Hydropower Project, Gorkha

Owner/ClientBikash Hydropower Company Private Limited
LocationGorkha District
Capacity4.55 MW
Gross Head219.5 m
Design Discharge2.6 m³/sec
Headrace Pipe1.3 m to 1.2 m diameter, length 1378 m
Surge TankSurface, steel pipe combination of 1.2 m diameter inclined pipe and 2.0 m diameter horizontal pipe
Penstock Pipe1.1 m diameter, length 647 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Preparation of Construction Drawings, Construction supervision

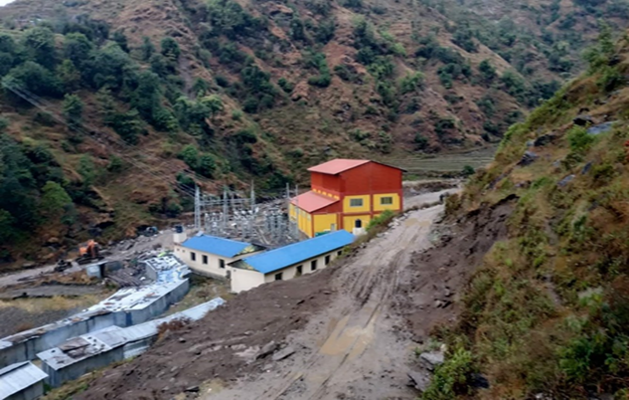

Padam Khola Small Hydropower Project 4.5 MW

Padam Khola Small Hydropower Project, Dailekh

Owner/ClientDolti Power Company Private Limited
LocationDailekh District
Capacity4.5 MW
Gross Head243.4 m
Design Discharge2.27 m³/sec
Penstock Pipe1.3 m to 1.0 m diameter, length 3244 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Preparation of Construction Drawings, Construction supervision

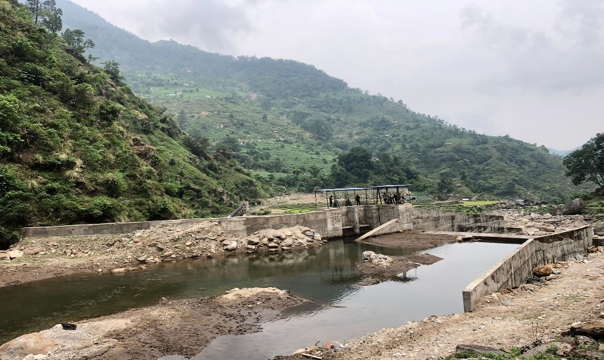

Upper Lohore Khola Small Hydropower Project 4.0 MW

Upper Lohore Khola Small Hydropower Project, Dailekh

Owner/ClientUpper Lohore Hydropower Limited
LocationDailekh District
Capacity4.0 MW
Gross Head200 m
Design Discharge2.5 m³/sec
Headrace Pipe1.4 m to 1.0 m diameter, length 2590 m
Penstock Pipe0.9 m diameter, length 195 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Preparation of Construction Drawings, Construction supervision support

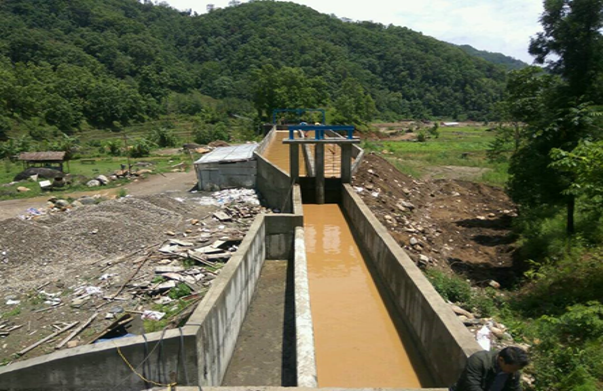

Puwa Khola-One Hydropower Project 4.0 MW

Puwa Khola-One Hydropower Project, Ilam

Owner/ClientPuwa Khola-One Hydropower Project Private Limited
LocationIlam District
Capacity4.0 MW
Gross Head117 m
Design Discharge4.5 m³/sec
Headrace Pipe1.6 m to 1.5 m diameter, length 3254 m
Surge TankSurface, Concrete circular tank of 6 m diameter and 25 m height
Penstock Pipe1.4 m diameter, length 403 m
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Preparation of Construction Drawings, Construction supervision support

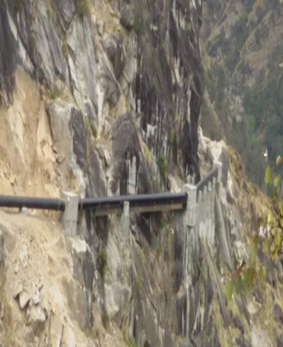

Dwari Khola Small Hydropower Project 3.75 MW

Dwari Khola Small Hydropower Project, Dailekh

Owner/ClientBhugol Energy Development Company Private Limited
LocationDailekh District
Capacity3.75 MW
Gross Head450 m
Design Discharge1.05 m³/sec
Headrace Pipe0.95 m to 0.85 m diameter, length 2527 m
Surge TankSurface, Inclined pipe with 2.5 m diameter and length 30 m
Penstock Pipe0.75 m to 0.65 m diameter, length 950 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Updated Feasibility study, Detailed engineering design, Preparation of Construction Drawings

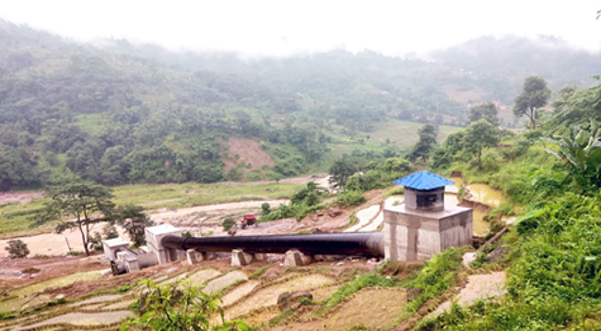

Super Mai Cascade Hydropower Project 3.0 MW

Super Mai Cascade Hydropower Project, Ilam

Owner/ClientMai Khola Hydropower Company Private Limited
LocationIlam District
Capacity3.0 MW
Gross Head46.85 m
Design Discharge7.5 m³/sec
Headrace Pipe2.1 m - 1.9 m diameter, length 1504 m
Surge TankSurface, steel pipes with combination of 1.9 m and 2.5 m diameter
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Preparation of Construction Drawings, Construction supervision

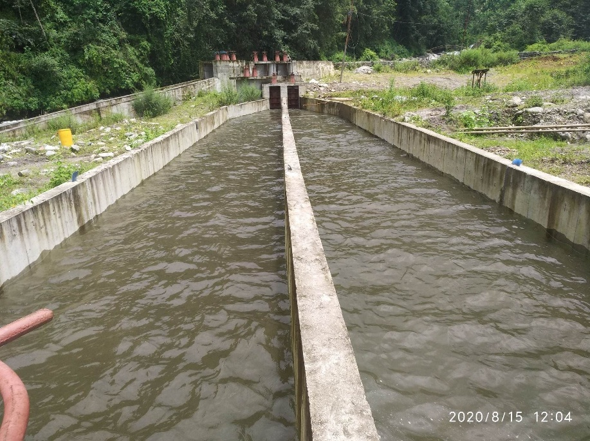

Upper Rawa Small Hydropower Project 3.0 MW

Upper Rawa Small Hydropower Project, Khotang

Owner/ClientRawa Energy Development Company Private Limited
LocationKhotang District
Capacity3.0 MW
Gross Head171.5 m
Design Discharge2.41 m³/sec
Penstock Pipe1.2 m to 1.0 m diameter, length 2253.52 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Preparation of Construction Drawings, Construction supervision

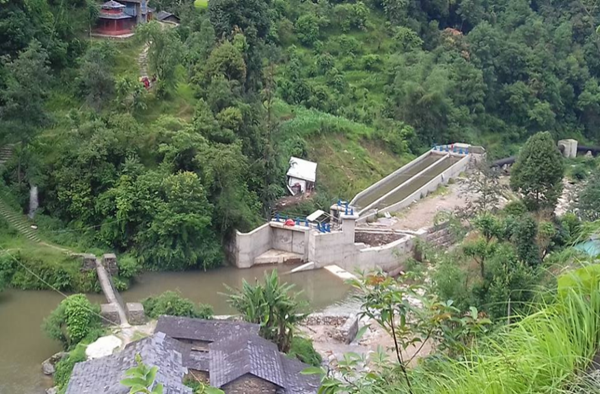

Daram Khola-A Hydroelectric Project 2.5 MW

Daram Khola-A Hydroelectric Project, Baglung

Owner/ClientSayapatri Hydropower Company Private Limited
LocationBaglung District
Capacity2.5 MW
Gross Head91.34 m
Design Discharge3.6 m³/sec
Penstock Pipe1.4 m diameter, length 1768 m
TurbineTwo-Unit Francis turbine, Horizontal Axis
Services Provided: Feasibility study, Detailed engineering design, Preparation of Construction Drawings, Construction supervision support

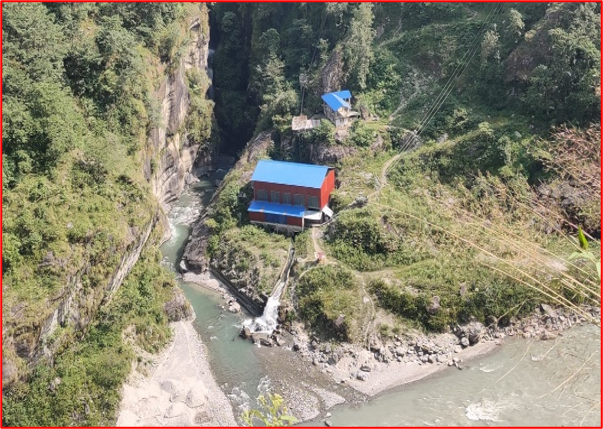

Lower Chhote Khola Small Hydropower Project 1.0 MW

Lower Chhote Khola Small Hydropower Project, Gorkha

Owner/ClientPashupati Environmental Power Company Private Limited
LocationGorkha District
Capacity1.0 MW
Gross Head116.09 m
Design Discharge1.05 m³/sec
Penstock Pipe0.9 m diameter, length 527.98 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Detailed engineering design, Preparation of Construction Drawings, Construction supervision support

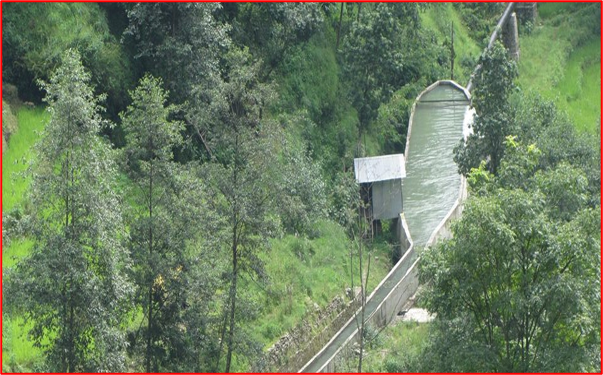

Suspa Bhukari Small HP Project 1.0 MW

Suspa Bhukari Small HP Project, Dolakha

Owner/ClientSuspa Bhukari HP Company Private Limited
LocationDolakha District
Capacity1.0 MW
Gross Head210 m
Design Discharge0.6 m³/sec
Headrace Pipe0.7 m diameter, length 1270 m
Surge TankSurface, Concrete Rectangular tank (10 m × 5 m × 1 m)
Penstock Pipe0.6 m diameter, length 625 m
TurbineTwo-Unit Pelton turbine, Horizontal Axis
Services Provided: Detailed engineering design, Preparation of Tender documents, Construction drawing preparations
